Features of Ahuja UBA-800DP Power Amplifier
- Ahuja Amplifier UBA-800DP
- 800 WATTS
- Easy to Use
- Black Color
- AC Operation
- Designed for use in a wide variety of PA applications and DJ performances.
- Built-in MP3 player with remote control for USB, SD/MMC card reader and Bluetooth facility.
- UBA-800 is a 800 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD
- Player, Cassette Player, Keyboard etc.
- Bass and Treble controls provided for precise and accurate tonal setting of the programme.
- Line Input and Line Output have been provided to enable interconnections with other power amplifiers.
- Circuit Protector Device has been provided which safeguards the amplifier against overload and short circuit.
- The amplifier has built-in protection against over voltage in AC mains supply which is specially useful while operating on a Genset.
- Indicator LEDs for Power, Signal, Temp, Overload and Fault conditions have been provided.
- 2Ω speaker matching provided in addition to 4 & 8Ω.
- 12 Months Warranty

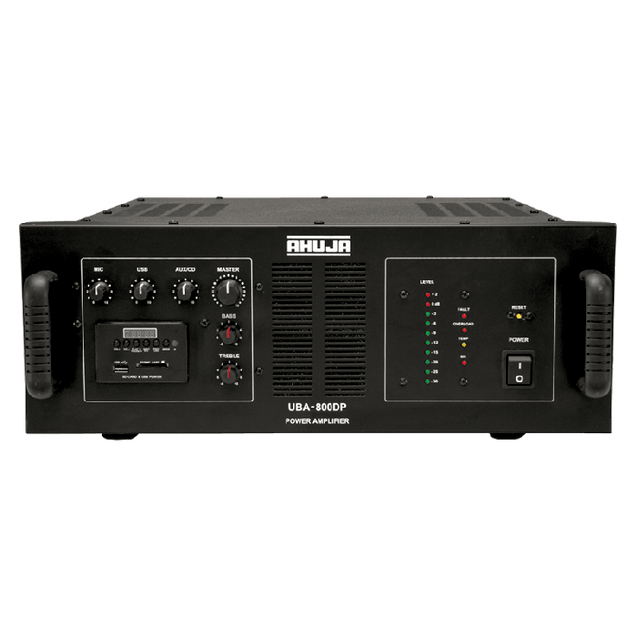

Model Ahuja Amplifier UBA-800DP
Amplifier Type Pa Amplifier with Built-In Player
1150W RMS Max., 800W RMS at 10%THD, 770W RMS at 5% THD 725W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels 1 × Mic 1mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ, 1 × Aux 250mV / 20kΩ, 1 × CD 250mV 20kΩ, 1 × Line 1V / 20kΩ
Frequency Response 50Hz–18,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass (100Hz) : ± 8dB, Treble (10kHz) : ± 8dB
Line Outputs 1V/1kΩ
Speaker Outputs 2Ω, 4Ω & 8Ω
Digital Player MP3 Player with USB, SD, MMC Card Reader & Bluetooth
Power Supply AC: 220-240V 50/60Hz
Protection 2 × 25 Amp fuse in ± DC supply 8 Amp circuit breaker in AC mains Protected against high AC mains voltage, overload & temperature
Power Consumption 1500 VA
Dimensions W482 × H186 × D530 mm
Number Of Items 1
Warranty 12 Month
