  • Ahuja PA Audio Mixing Consoles Stereo Model AMX 812

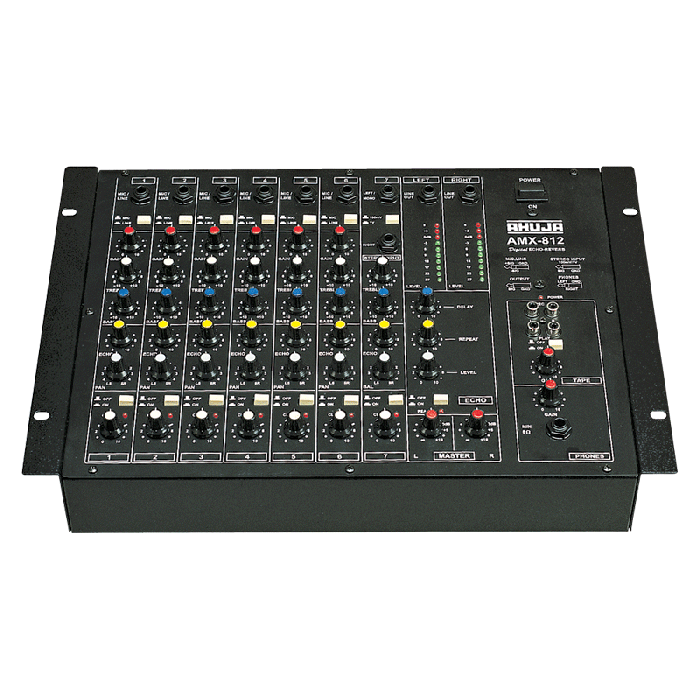

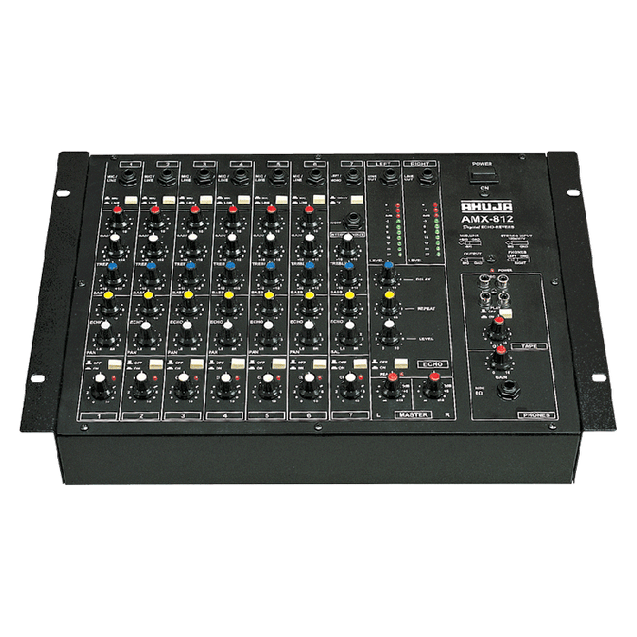

Ahuja PA Audio Mixing Consoles Stereo Model AMX 812
Be the first review

SKU: amx812

In Stock

Rs. 10,057.00

Secured and trusted checkout with
Secured and trusted checkout with

DELIVERY TIME : 4 T0 8 BUSINESS DAYS



Features of Ahuja Mixer AMX-812 8 Channels


♦ Ahuja Mixer AMX- 812
♦ 8 Channel
♦ AC & 24V DC Operation
♦ Input Channels: Each Channel has a 1/4” phone jack selectable for either Mic or Line
input & accepts both balanced & unbalanced signals.
♦ Stereo Channel: Independent Stereo input through separate 1/4” unbalanced phone
jacks for Left & Right channels.
♦ Each channel has Gain, Bass, Treble, PAN, ECHO and Level controls with Clip LED
indicator.
♦ Echo section provided with Delay, Repeat & Level controls. Tape section for Record &
Playback facility.
♦ 5.0kg
♦ 12 Months Warranty

SPECIFICATIONS:
BRAND Ahuja
Model AMX 812
Power Requirement AC: 220-240V 50/60Hz, DC: 24v (2×12V Car Battery)
MIC Input (Impedance/Gain) 2kΩ/62dB
LINE Input (Impedance/Gain) 20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB
Distortion < 0.08%
Frequency Response 30Hz - 20kHz (+0,-1dB)
Tone Controls Bass: ± 12dB at 100Hz, Treble: ± 12dB at 10kHz
Line Output HI 0dBm/+17dBm (775mV/5.5V)
ECHO/Reverb System Digital Signal Processing
Signal to Noise Ratio >70dB (0dBm, 0.775V)
Dimensions W423 × H93 × D302 mm
Weight 5.0kg
Warranty 12 Months
