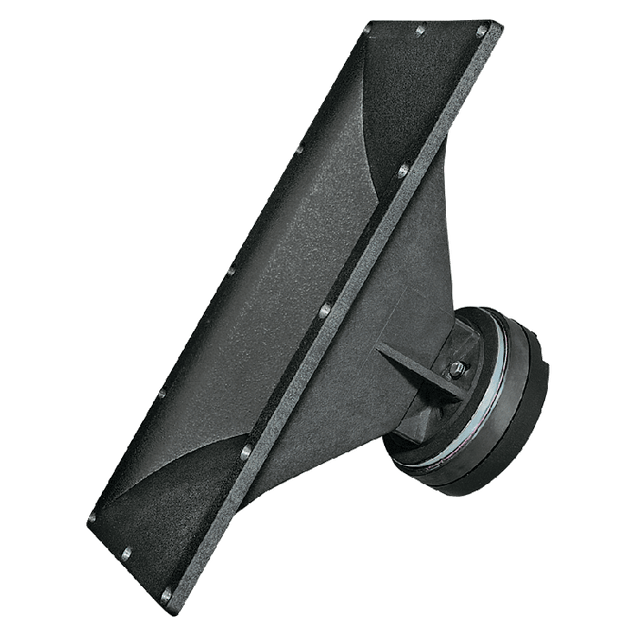

Features :Ahuja PA Compression Horn Driver(Model-CDH 800)
- Ahuja CDH-800
- 80 WATTS
- Professional compression driver-horn CDH-800 loudspeaker, suitable for high power
- Owing to its titanium diaphragm the HF response is superb.
- Ideal for use with 2 nos.
- Low Frequency speakers AHUJA L15-MB300 to make a 600 watts speaker system.
- It can also be used with a single L15-MB300.
- The solid glass filled ABS horn has a very even radiation and excellent sound.
- Thus it is ideal for all indoor as well as outdoor PA and professional DJ applications.
- 12 Months Warranty
Power Capacity 80W RMS
Throat Diameter 25.4 mm (1”)
Nominal Impedance 8Ω
Sensitivity (1W/1m ) 108dB
Usable Frequency Range 1.5kHz-18kHz
Recommended Crossover 2.5kHz 18db/oct
Voice Coil Diameter 44.4 mm
Diaphragm Material Titanium
Voice Coil Material Edge Wound Copper Clad Alumimium Ribbon
Voice Coil Former Resin Bonded Kapton
Horn Material ABS with Glass Filled Black Polycarbonate
Nominal Coverage Angle H90° x V40° (-6dB)
Horn Cut off Frequency 600Hz
Mounting Cutout W370 × H155 mm
Overall Dimensions W424 × H194 × D205 mm
Warranty 12 Months
