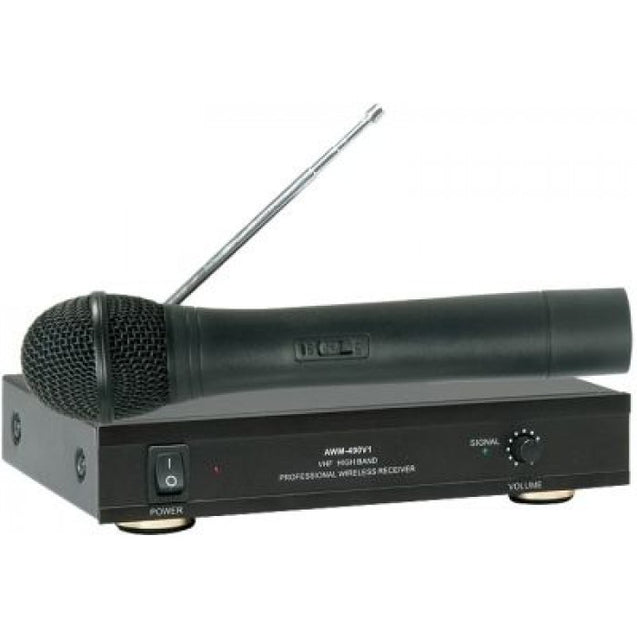

Buy Ahuja VHF Wireless PA Microphones Model AWM-490V1 online at infernocart. Infernocart India’s leading shopping portal provides best deal on Ahuja AWM-490V1 Microphones visit website for more details .Free shipping all over india.Wholesale rates available at infernocart.
Features Of Ahuja AWM-490V1 Microphones
♦ Ahuja AWM-490V1 Microphones
♦ Ahuja VHF Wireless PA Microphones
♦ Compact
♦ Lightweight
♦ Single Channel VHF Wireless Microphone System.
♦ Operates at Quartz Crystal Locked VHF High Band frequency
and available in 8 different frequencies.
♦ Internal Antenna in the Microphone and a telescopic Antenna in
the Receiver for clear and distortion free reception.
♦ Receiver operates on 9V DC through an AC Adaptor supplied
along with the system.
♦ The microphone operates with a 9V Dry Battery.
♦ Microphone with 3-position slide switch for 'Audio On'-'Audio
Mute'- 'Off' positions.
♦ Audio output from receiver available at OUT jack socket.
♦ Ideal for: PA Applications... Stage & Auditoriums... Seminar
Halls... Places of Worship... Recreation Centers...
| MICROPHONE |
| BRAND |
Ahuja |
| Model |
Ahuja AWM-490V1 Microphones |
| TYPE |
Ahuja VHF Wireless PA Microphones |
| Color |
Black |
| RF Output Power |
15mw (max.) |
| Modulation Mode |
FM (F3E) |
| Microphone Element |
Dynamic, cardioid |
| Dynamic Range |
100dB |
| Spurious Emission |
< 45dB |
| Maximum Deviation |
± 25kHz |
| Frequency Response |
50-15,000Hz |
| Antenna |
Internal dipole |
| Current Consumption |
< 60mA |
| Battery Life |
6-8 hrs. with 9V battery |
| Controls |
Microphone On/Mute/Off Switch |
| Indication |
Green LED for indicating microphone On |
| Dimensions |
Ø52 × L242 mm |
| Weight |
0.20kg. (w/o battery) |
| RECEIVER |
| Frequency Stability |
± 0.005% Quartz Crystal Controlled |
| Receiving Method |
Non-diversity |
| Audio Output |
0-55mV/1k |
| Signal To Noise Ratio |
> 100dB |
| Distortion |
< 0.5% |
| Frequency Response |
50-15,000Hz |
| Maximum Deviation |
± 25kHz |
| Antenna |
Telescopic |
| Power Requirement |
AC: 220-240V 50/60hz for AC adaptor |
| Controls |
Power On/Off switch, Audio Output Volume Control |
| Indication |
Red LED for Power ON Green LED for RF Reception |
| Dimensions |
210 × H42 × D152 mm |
| Weight |
0.61kg |
| Warranty |
12 Months |
