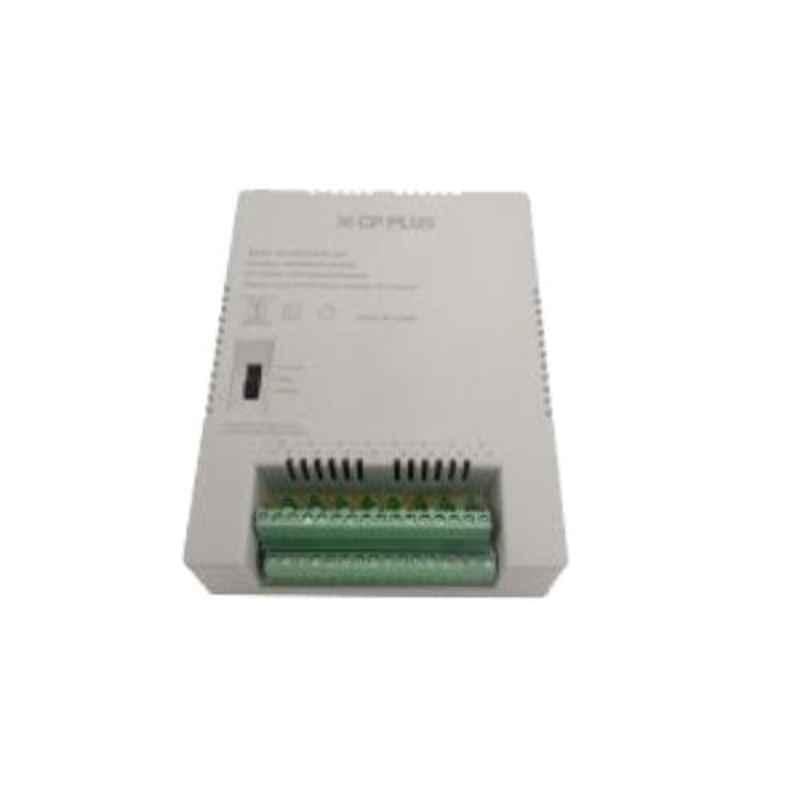

CP Plus 16 Channel Power Supply, CP-DPS-PD16-12D

Be the first review

Availability: In Stock Out of stock

Rs. 1,889.00

Secured and trusted checkout with

Brand	CP Plus
Line Regulation	±1.0%, ±1.0% & ±1.0%
Efficiency	86%
Working Temperature	-20 to 45 deg C
Voltage	12 V DC, 13.5 V DC & 15 V DC Range: 11.4-12.6 V, 12.82-14.17 V & 14.25-15.75 V 150-285 V AC
Humidity	20-90%
Item Code	CP-DPS-PD16-12D
Overload Capacity	Rated Output: 110-200%
Storage Temperature	-20 to 85 deg C
Coefficient	Temperature: 10-500 Hz, 3G 10 min/1 Cycle & 60 min
Warranty	1 Year Warranty
Channel	Output: 16
Dimensions	186x130.5x39 mm
Short Circuit Breaking Capacity	Protection Type: Shut Down 0/P & Recovers Automatically After Fault Removed
Weight	0.43 kg
Indicator	LED
Noise Level	Ripple: 120 mVp-p,135 mVp-p & 150 mVp-p
Current Range	0-8 Amp, 0-7.12 Amp & 0-6.4 Amp
Country of origin	India
EAN	4250593435000
Timer	Set Up: 2500 m/s, 15 m/s at Full Load Hold Up: 35 m/s at Full Load
Frequency	47-63 Hz
Rated Power	96 W
Rated Current	8 Amp, 7.12 Amp & 6.4 Amp
Load Regulation	±5.0%, ±5.0% & ±5.0%
Current	Inrush: Cold Start: 50 Amp & 220 V AC Leakage: <2 mA & 240 V AC Overload Rated Output: 110-200%
