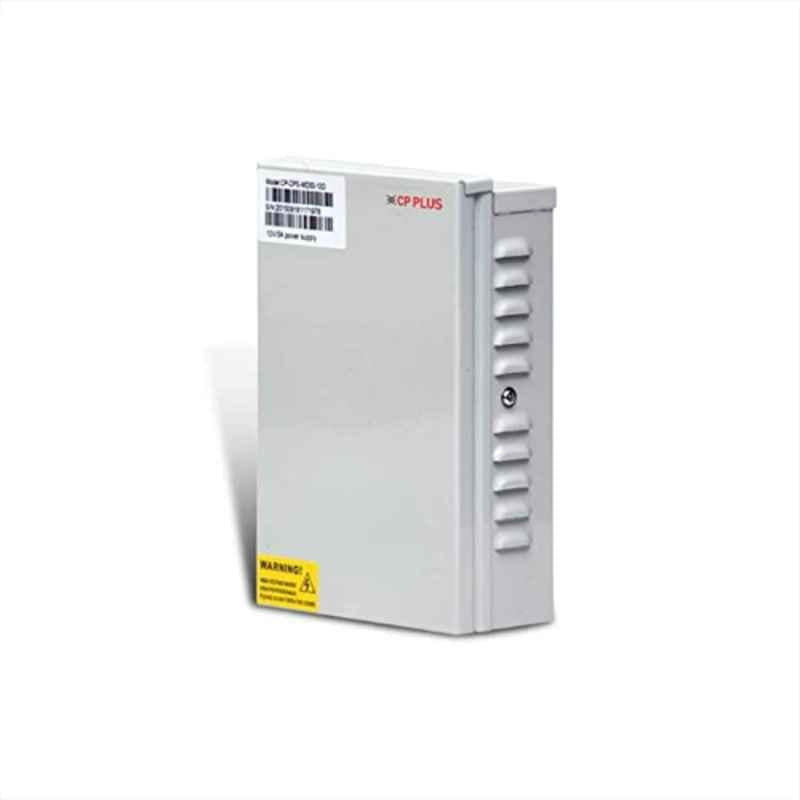

CP Plus 5A Metal Case Power Supply, CP-DPS-MD50-12D

Be the first review

Availability: In Stock Out of stock

Rs. 630.00

Secured and trusted checkout with

Brand	CP Plus
Coefficient	Temperature: 0 to 50 deg C
Warranty	1 Year Warranty
Vibration	10-500 Hz, 3G 10 min & 1 Cycle 60 min
Output Power	12 V DC
Waterproof	Yes
Dimensions	156x103x47 mm
Indicator	LED
Noise Level	Ripple: 100 mVp-p
Resistance	Isolation: I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms
Current Range	0-5 Amp Inrush: 20 Amp, 115 V AC 40 Amp & 230 V AC Leakage: <2 mA & 240 V AC
Country of origin	India
EAN	4250593411691
Line Regulation	±1.0%
Timer	Set Up: 600 m/s & 30 m/s at Full Load Hold Up: 13 m/s at Full Load
Efficiency	0.84
Voltage	180-264 V AC & Adjustment: 11.4-13.2 V Tolerance: ±2.0%
Working Temperature	-20-40 deg C
Frequency	47-63 Hz
Rated Power	60 W
Item Code	CP-DPS-MD50-12D
Overload Capacity	Rated Output: 110-200%
Storage Temperature	-20 to 85 deg C
