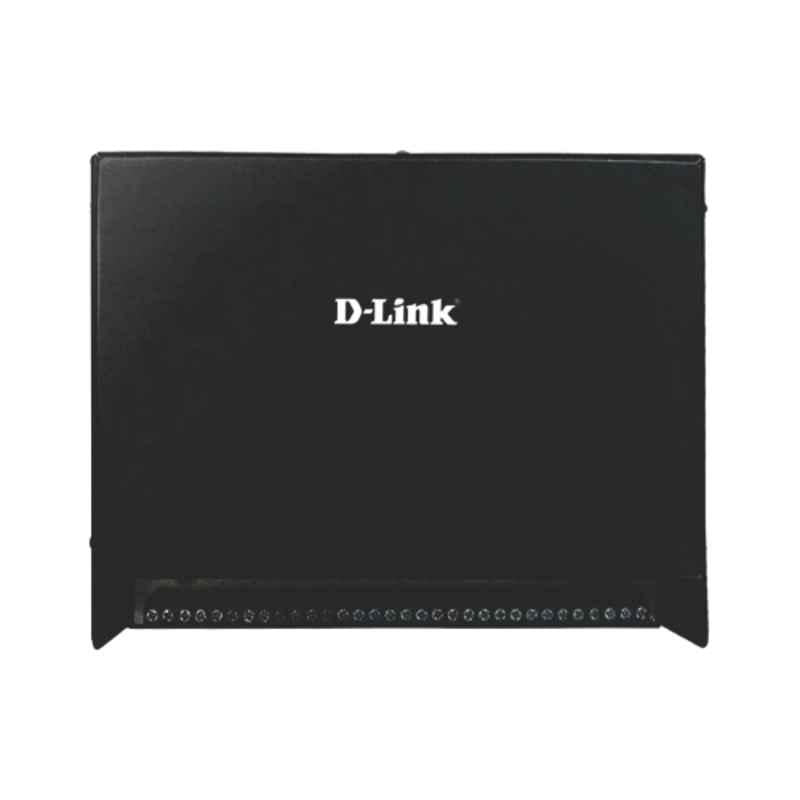

D-Link 16 Channel CCTV Power Supply, DPS-F1B08

Be the first review

Availability: In Stock Out of stock

Rs. 1,800.00

Secured and trusted checkout with

Brand	D-Link
Housing Material	Metallic Cabinet
Auto Reset	During Overload & Short Circuit
Leakage Current	< 0.25 mA /265 V AC
Country of origin	Taiwan
Overload Protection	Auto Restart
Rise Time	Setup: < 10 ms at 230 V AC Input
Line Regulation	11.40-12.60 V DC
Surge Protection	4 kV
Efficiency	> 75% at all Load Conditions with Complete AC Input Operating Voltage (110 V AC - 300 V AC)
Inrush Current	< 50 Amp Peak at 230 V AC Cold Start at 25 deg
Working Temperature	0 to 50 deg C with 3.5A 30 deg C with 4.0A
Additional Details	Ripple: <240mV
Input Voltage Range	110-300 V AC
Frequency	47 to 53 Hz
Hold Time	Up: >10 ms at 110 V AC Input
Output Voltage	12 V DC
Finish	Powder Coated Mat Finish
Over Voltage Protection	Input: The Power Supply is withstanding Upto 330 V AC, without Interrupting
Item Code	DPS-F1B16
Storage Temperature	-15 to 70 deg C
Working Humidity	10 to 90% RH Non-Condensing
