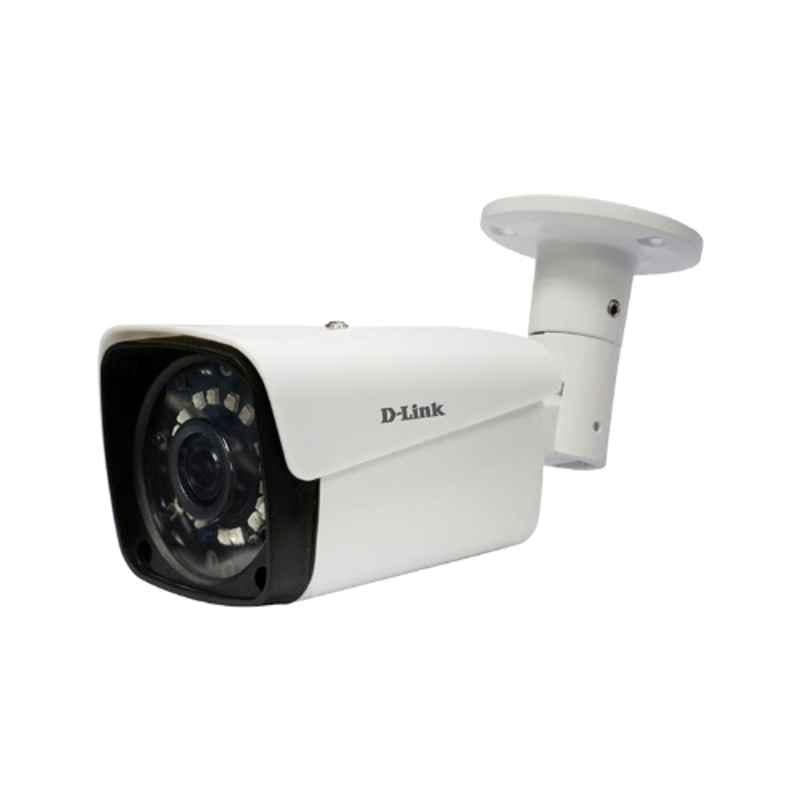

D-Link 4MP 3.6mm Fixed IP Bullet Camera, IR: 30 m, DCS-F5714-L1

TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour & IPV6

Auto/Manual, 1/3-1/10000 s

1 RJ45 10/100M Ethernet Port

Network: User Authentication, IP Address Filtering, Video Mask

IR Cut Filter with Auto Switch

12 V DC (+/-10%)

Smart IR, BLC, Defog

Web Interface: IE

Smart Functions: Area Intrusion, Line Crossing

Mobile Surveillance: iPhone, iPad & Android Devices

POE Supply: PoE (802.3af)

HLC: 50 Hz: 25 fps CIF (352×288)

60Hz: 30 fps CIF (352×240)

4 MP

DCS-F5714-L1

Onvif 2.6, Profile S, CGI

-30 to 60 deg C

H.264/H.264+/H.265/H.265+

11 Kbps to 8 Mbps

Image: Brightness/Contrast/Saturation/Hue

30 m

187x64x64 mm

300 g (Without HDD)

CE, BIS

95% or less (Non-Condensing)

Taiwan

IP66

Image: 4MP (2560×1440)

1/2.7 inch Progressive Scan CMOS Sensor

M12

3.6 mm at F2.0

Horizontal FOV: 86 deg

Vertical FOV: 64.5 deg

Mobile: D-Link Smart CCTV App

Desktop: DSVS (D-Link Smart Video Surveillance)

7 W Maximum

Main: 50 Hz: 20 fps 4 MP(2560×1440), 25 fps 3 MP(2048×1536), 25 fps 1080P(1920×1080), 25 fps 960P(1280×960) 60 Hz: 20 fps 4 MP(2560×1440), 30 fps 3 MP(2048×1536), 30 fps 1080P(1920×1080), 30 fps 960P(1280×960

Sub: 50 Hz: 25 fps D1(704×576),25 fps CIF(352×288)

60 Hz: 30 fps D1(704×480), 30 fps CIF(352×240)
