Rs. 3,950.00
FEATURES

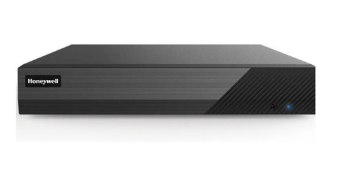

Model No. | HA-DVR-2104-L |
---|---|
SYSTEM | |
Main Processor | Embedded Processor |
Operating System | Embedded LINUX |
VIDEO AND AUDIO | |
Analog Camera Input | 4 Channel, BNC |
AHD Camera | 1080P@25/30, 720P@25/30fps |
CVBS Camera | PAL/NTSC |
Audio In/Out | 1/1, RCA |
Two-way Talk | Reuse audio in/out, RCA |
RECORDING | |
Video Compression | H.265 / H.264 |
Resolution | 1080N, 720P, 960H, D1, CIF |
Record Rate | Main Stream: 1080N/720P/960H/D1/CIF (1~25/30fps) Sub stream: CIF (1~15fps) |
Video Bit Rate | 32Kbps ~ 4096Kbps Per Channel |
Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post- record: 10 ~ 300 sec |
Audio Compression | AAC(only for the 1st channel), G.711A, G.711U, PCM |
Audio Sample Rate | 8KHz, 16 bit Per Channel |
Audio Bit Rate | 64Kbps Per Channel |
DISPLAY | |
Interface | 1 HDMI ,1 VGA |
Resolution | 1920×1080, 1280×1024, 1280×720 |
Multi-screen Display | 1/4 |
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
NETWORK | |
Ethernet | 1 RJ-45 Port (100 Mbps) |
Network Function | HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP filter; PPPoE; DDNS; FTP; IP Search |
Max. User Access | 128 users |
Smart Phone | iPhone, iPad, Android (phone and tablet) |
Interoperability | ONVIF Conformant |
VIDEO DETECTION AND ALARM | |
Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
Video Detection | Motion Detection, Video Loss, Tampering and Diagnosis |
PLAYBACK AND BACKUP | |
Playback | 1/4 |
Search Mode | Time/Date; Alarm; Motion Detection; Exact Search (accurate to a second); Smart Search |
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next v, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
Backup Mode | USB Device/Network |
STORAGE | |
Internal HDD | 1 SATA Port, up to 6TB capacity |
AUXILIARY INTERFACE | |
USB | 2 USB 2.0 |
RS485 | 1 Port, for PTZ Control |
ELECTRICAL | |
Power Supply | DC12V/1.5A |
Power Consumption (without HDD) | <10W |
PHYSICAL | |
Dimension | 260×236×48mm(10.2”×9.3”×1.9”) |
Net Weight(without HDD) | 0.9kg ( 2.0lb) |
ENVIRONMENTAL | |
Operating Conditions | -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH |
Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
CERTIFICATIONS | |
Certifications | BIS certified |
